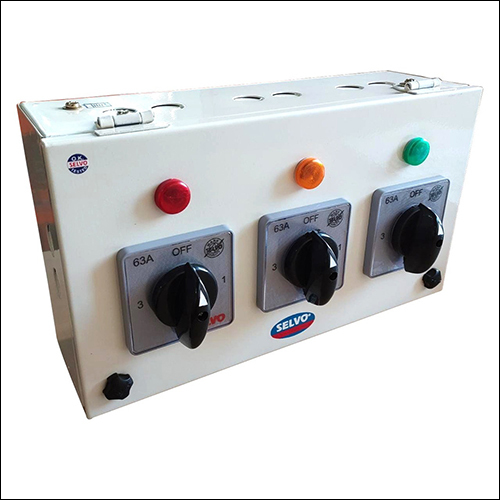

63A Three Phase Neutral (TPN) Phase selector Enclosure (with 1 Pole 3 Ways Rotary switches Fitted and Duly Wired)

‎63 Amps

Brand

‎SELVO

Item Dimensions LxWxH

‎38 x 22 x 18 Centimeters

Circuit Type

‎3-way

Actuator Type

‎Rotary

Contact Material

‎Silver

Number of Positions

‎7

Controller Type

‎Push Button

Connectivity Protocol

‎X-10

Net Quantity

‎1.0 count

Number of Items

‎1

Manufacturer

‎SELVO ELECTRICALS INDIA PVT. LTD.

Country of Origin

‎India

Item model number

‎63A TPN PHASE SELECTOR ENCLOSURE

Product Dimensions

‎38 x 22 x 18 cm 4.67 Kilograms

ASIN

‎B09SZ2TS7J

Types

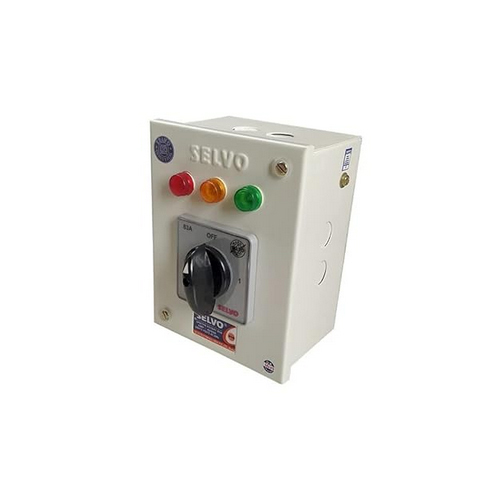

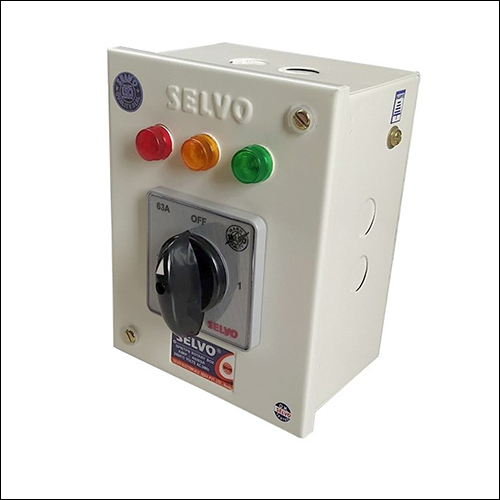

Spn  Tpn Phase Selector Enclosure

Enclosure Material

Crca Sheets Which Have Lots Of Applications In Various Industries . Crca Sheets Are Harder With Smooth Surface And Good Dimensional Accuracy

Rotary Switches Type

1 Pole 3 Ways Cam Operated Rotary Switches Are Fitted Inside The Enclosure

Current Ratings

32a  40a & 63a

Working Principle

Cam Operated Rotary Switches Are Used To Make Or Break Operation In A Sequential Way By Rotating The Switch To Different Positions By Using The Knob . These Rotary Switches Are Suitable For Only Ac Power Supply

Indicator

Led Indicator Provision  If The Led Is Glowing Is The Power Supply Is Continuous And If The Led Is Not Glowing This Means There Can Be Power Cut In That Phase And User Have To Rotate The Switch To Another Phase For Power Supply Flow To Equipments

Conduit Knockouts

Adequate Conduit Knockouts Size Are Provided For Easy Cable Termination

Wiring

The Rotary Switches Are Duly Wired And Provisions Of Connectors Are Given To Form A Link Between External Power Supply To The Load  The Color Of Wirings Are Red Yellow & Blue Which Indicates EachPhase Wiring

Embossed Earthing

Embossed Earthing Identification On Both Sides Of Enclosure For Protection Against Stray Charges Producing Leakage Current An Additional Safety Factor And Equipped With Stainless Steel Screws That Prevents Rusting Of Surfaces

Mounting Type

Surface / Flush Mounting
